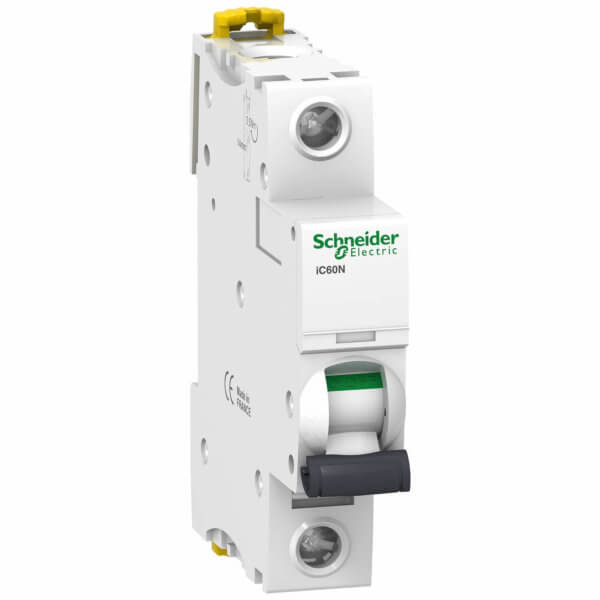

A9F74120 iC60N –

Miniature circuit-breaker, Acti9 iC60N, 1P, 20 A, C curve, 6000 A (IEC 60898-1), 10 kA (IEC 60947-2)

$36.00

10 in stock

Main
device application Distribution
range Acti 9
product name Acti9 iC60
product or component type Miniature circuit-breaker
device short name IC60N
poles description 1P
number of protected poles 1
[In] rated current 20 A
network type AC
DC
trip unit technology Thermal-magnetic
curve code C
breaking capacity 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1
10 kA Icu at 60…72 V DC conforming to EN/IEC 60947-2
15 kA Icu at 12…60 V DC conforming to EN/IEC 60947-2
10 kA Icu at 220…240 V AC 50/60 Hz conforming to EN/IEC 60947-2
36 kA Icu at 12…60 V AC 50/60 Hz conforming to EN/IEC 60947-2
20 kA Icu at 100…133 V AC 50/60 Hz conforming to EN/IEC 60947-2
utilisation category Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2
suitability for isolation Yes conforming to EN 60898-1
Yes conforming to EN 60947-2
Yes conforming to IEC 60898-1
Yes conforming to IEC 60947-2
standards EN 60898-1
EN 60947-2
IEC 60898-1
IEC 60947-2
Complementary
network frequency 50/60 Hz
magnetic tripping limit 8 x In +/- 20 %
[Ics] rated service breaking capacity 27 kA 75 % conforming to EN 60947-2 – 12…60 V AC 50/60 Hz
7.5 kA 75 % conforming to EN 60947-2 – 220…240 V AC 50/60 Hz
27 kA 75 % conforming to IEC 60947-2 – 12…60 V AC 50/60 Hz
7.5 kA 75 % conforming to IEC 60947-2 – 220…240 V AC 50/60 Hz
15 kA 75 % conforming to IEC 60947-2 – 100…133 V AC 50/60 Hz
15 kA 75 % conforming to EN 60947-2 – 100…133 V AC 50/60 Hz
6000 A 100 % conforming to EN 60898-1 – 230 V AC 50/60 Hz
6000 A 100 % conforming to IEC 60898-1 – 230 V AC 50/60 Hz
10 kA 100 % conforming to EN 60947-2 – 72 V DC
10 kA 100 % conforming to IEC 60947-2 – 72 V DC
15 kA 100 % conforming to EN 60947-2 – 12…60 V DC
15 kA 100 % conforming to IEC 60947-2 – 12…60 V DC
limitation class 3 conforming to EN 60898-1
3 conforming to IEC 60898-1
[Ui] rated insulation voltage 500 V AC 50/60 Hz conforming to EN 60947-2
500 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2
contact position indicator Yes
control type Toggle
local signalling Trip indicator
mounting mode Fixed
mounting support DIN rail
comb busbar and distribution block compatibility Top or bottom: YES
9 mm pitches 2
height 85 mm
width 18 mm
depth 78.5 mm
net weight 0.215 kg
colour White
mechanical durability 20000 cycles
electrical durability 10000 cycles
connections – terminals Single terminal (top or bottom) 1…25 mm² rigid
Single terminal (top or bottom) 1…16 mm² flexible
wire stripping length 14 mm for top or bottom connection
tightening torque 2 N.m top or bottom
earth-leakage protection Without
Environment
IP degree of protection IP20 conforming to IEC 60529
IP20 conforming to EN 60529
pollution degree 3 conforming to EN 60947-2
3 conforming to IEC 60947-2
overvoltage category IV
tropicalisation 2 conforming to IEC 60068-1
relative humidity 95 % at 55 °C
operating altitude 0…2000 m
ambient air temperature for operation -35…70 °C
ambient air temperature for storage -40…85 °C
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 114 g
Package 1 Height 7.5 cm
Package 1 width 1.8 cm
Package 1 Length 9.5 cm
Unit Type of Package 2 BB1
Number of Units in Package 2 12
Package 2 Weight 1.444 kg
Package 2 Height 8 cm
Package 2 width 9.5 cm
Package 2 Length 22.5 cm
Unit Type of Package 3 S03
Number of Units in Package 3 132
Package 3 Weight 16.371 kg
Package 3 Height 30 cm
Package 3 width 30 cm
Package 3 Length 40 cm
