RE22R2AMR

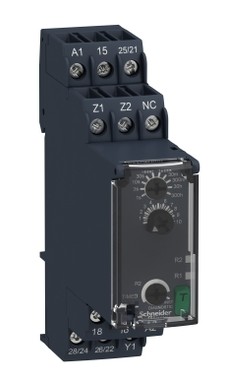

RE22R2AMR – On-delay Timing Relay – 0.05s…300h – 24…240V AC/DC – 2C/O.
$95.00
| range of product | Harmony Timer Relays | |
|---|---|---|
| product or component type |
Modular timing relay
|
|
| discrete output type |
Relay
|
|
| device short name |
RE22
|
|
| nominal output current |
8 A
|
| Contacts type and composition | 1 C/O timed contact, cadmium free 1 C/O timed or instantaneous contact, cadmium free |
|---|---|
| Time delay type | Power on-delay |
| Time delay range | 0.05…1 s 0.3…3 s 3…30 h 30…300 min 10…100 s 30…300 s 3…30 s 30…300 h 1…10 s 3…30 min |
| Control type | Rotary knob Diagnostic button Potentiometer external |
| [Us] rated supply voltage | 24…240 V AC/DC 50/60 Hz |
| Release input voltage | <= 2.4 V |
| Voltage range | 0.85…1.1 Us |
| Supply frequency | 50…60 Hz +/- 5 % |
| Connections – terminals | Screw terminals, 1 x 0.5…1 x 3.3 mm² 20 AWG…12 AWG) solid without cable end Screw terminals, 2 x 0.5…2 x 2.5 mm² 20 AWG…14 AWG) solid without cable end Screw terminals, 1 x 0.2…1 x 2.5 mm² 24 AWG…14 AWG) flexible with cable end Screw terminals, 2 x 0.2…2 x 1.5 mm² 24 AWG…16 AWG) flexible with cable end |
| Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1 |
| Housing material | Polycarbonate |
| Repeat accuracy | +/- 0.5 % IEC 61812-1 |
| Temperature Drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale 25 °C IEC 61812-1 |
| Time delay type | Power on-delay – A- Power on-delay relay Power on-delay – Aw- Power on-delay relay w/ retrigger/restart |
| Control signal pulse width | 100 ms with load in parallel 30 ms |
| Insulation resistance | 100 MOhm 500 V DC IEC 60664-1 |
| Recovery time | 120 ms on de-energisation |
| Immunity to microbreaks | 10 ms |
| Power consumption in VA | 3 VA 240 V AC |
| Power consumption in W | 1.5 W 240 V DC |
| Switching capacity in VA | 2000 VA |
| Minimum switching current | 10 mA 5 V DC |
| Maximum switching current | 8 A |
| Maximum switching voltage | 250 V AC |
| Electrical durability | 100000 cycles, 8 A at 250 V, AC-1 100000 cycles, 2 A at 24 V, DC-1 |
| Mechanical durability | 10000000 cycles |
| Rated impulse withstand voltage | 5 kV 1.2…50 µs IEC 60664-1 |
| Power on delay | 100 ms |
| Creepage distance | 4 kV/3 IEC 60664-1 |
| Overvoltage category | III conforming to IEC 60664-1 |
| Safety reliability data | B10d = 200000 MTTFd = 216.8 years |
| Mounting position | Any position |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Status LED | Green LED backlight steady)dial pointer indication Yellow LED steady)output relay energised Yellow LED fast flashing)timing in progress and output relay de-energised Yellow LED slow flashing)timing in progress and output relay energised |
| Function available | A- Power on-delay relay-2 C/O Aw- Power on-delay relay w/ retrigger/restart-2 C/O |
| Width | 0.9 in (22.5 mm) |
| Product Weight | 0.231 lb(US) (0.105 kg) |
| Control Type | With test button |
| Number of functions | 2 |
| Dielectric strength | 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1 |
|---|---|
| Standards | UL 508 IEC 61812-1 |
| Directives | 2004/108/EC – electromagnetic compatibility 2006/95/EC – low voltage directive |
| Product Certifications | CE CCC GL UL RCM EAC CSA |
| Ambient Air Temperature for Operation | -4…140 °F (-20…60 °C) |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| IP degree of protection | IP40 housing: conforming to IEC 60529 IP20 terminals: conforming to IEC 60529 IP50 front panel: conforming to IEC 60529 |
| Pollution degree | 3 IEC 60664-1 |
| Vibration resistance | 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn not operating 11 ms IEC 60068-2-27 5 gn in operation 11 ms IEC 60068-2-27 |
| Relative humidity | 95 % 77…131 °F (25…55 °C) |
| Electromagnetic compatibility | Fast transients immunity test – test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 Surge immunity test – test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 Surge immunity test – test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 Electrostatic discharge – test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 Electrostatic discharge – test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test – test level: 10 V/m level 3 (80 MHz…1 GHz) conforming to IEC 61000-4-3 Conducted RF disturbances – test level: 10 V level 3 (0.15…80 MHz) conforming to IEC 61000-4-6 Fast transient bursts – test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 Immunity to microbreaks and voltage drops – test level: 30 % (500 ms) conforming to IEC 61000-4-11 Immunity to microbreaks and voltage drops – test level: 100 % (20 ms) conforming to IEC 61000-4-11 |
| Category | US10CP222376 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 3606480792472 |
| Returnability | Yes |
| Country of origin | ID |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 1.02 in (2.6 cm) |
| Package 1 Width | 3.2 in (8.2 cm) |
| Package 1 Length | 3.7 in (9.5 cm) |
| Package weight(Lbs) | 4.02 oz (114.0 g) |
