XALD134

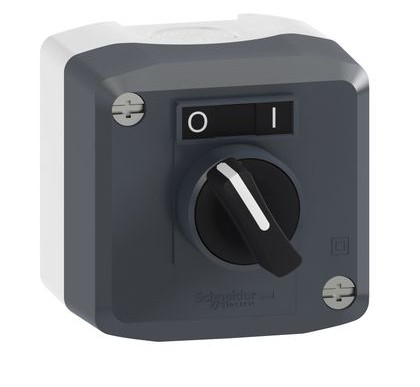

XALD134 – Dark grey station – 1 selector switch Ø22 standard handle 1NO.
$78.00
| range of product |
Harmony XALD
|
|
|---|---|---|
| product or component type |
Complete control station
|
|
| device short name |
XALD
|
|
| product destination |
For XB5 Ø 22 mm control and signalling units
|
|
| control station application |
Start-Stop function
|
|
| colour of base of enclosure |
Light grey (RAL 7035)
|
|
| colour of cover |
Dark grey (RAL 7016)
|
|
| material |
Polycarbonate
|
|
| operator profile |
1 selector switch with handle
|
|
| operators description |
Standard handle ”O-I” 1 NO
|
|
| control station composition |
1 selector switch with standard handle 1 NO O-I marking
|
|
| marking location |
Marking on legend holder
|
|
| contact operation |
Slow-break
|
| cable entry |
2 knock-outs for cable entry, clamping capacity: 14 mm
2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
|
|---|---|---|
| net weight |
0.163 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| operator position information |
2 positions
|
|
| positive opening |
Without
|
|
| operating travel |
4.3 mm (total travel)
|
|
| torque value |
0.14 N.m NO changing electrical state
|
|
| mechanical durability |
1000000 cycles
|
|
| connections – terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
|
| tightening torque |
0.8…1.2 N.m conforming to EN/IEC 60947-1
|
|
| shape of screw head |
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
|
| contacts material |
Silver alloy (Ag/Ni)
|
|
| short-circuit protection |
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
|
|
| [Ith] conventional free air thermal current |
10 A conforming to EN/IEC 60947-5-1
|
|
| [Ui] rated insulation voltage |
600 V (pollution degree 3) conforming to EN/IEC 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
6 kV EN/IEC 60947-1
|
|
| [Ie] rated operational current |
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 |
|
| electrical durability |
1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
|
| electrical reliability |
Λ < 10exp(-6) at 5 V, 1 mA conforming to EN/IEC 60947-5-4
Λ < 10exp(-8) at 17 V, 5 mA conforming to EN/IEC 60947-5-4 |
